Coulbourn Equipment Adapter Cable

SG-217-M-CI
Adapter cable – Coulbourn connection panel to Med input device
M-Shell/F-Pin 3-pin mini-Molex  >  Male RJ12 6-pin (wired for inputs)
Goes from Coulbourn connection panel – input port  >  Med input device (ex. lever response)

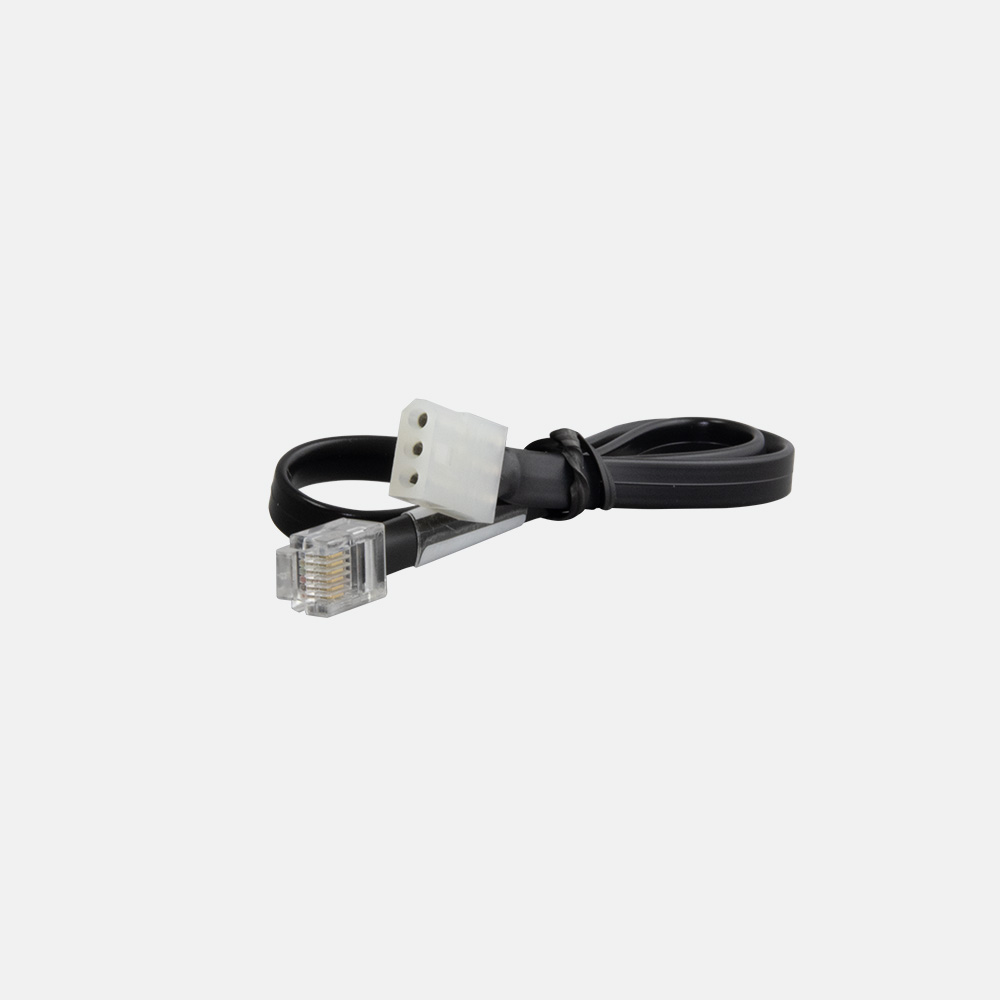

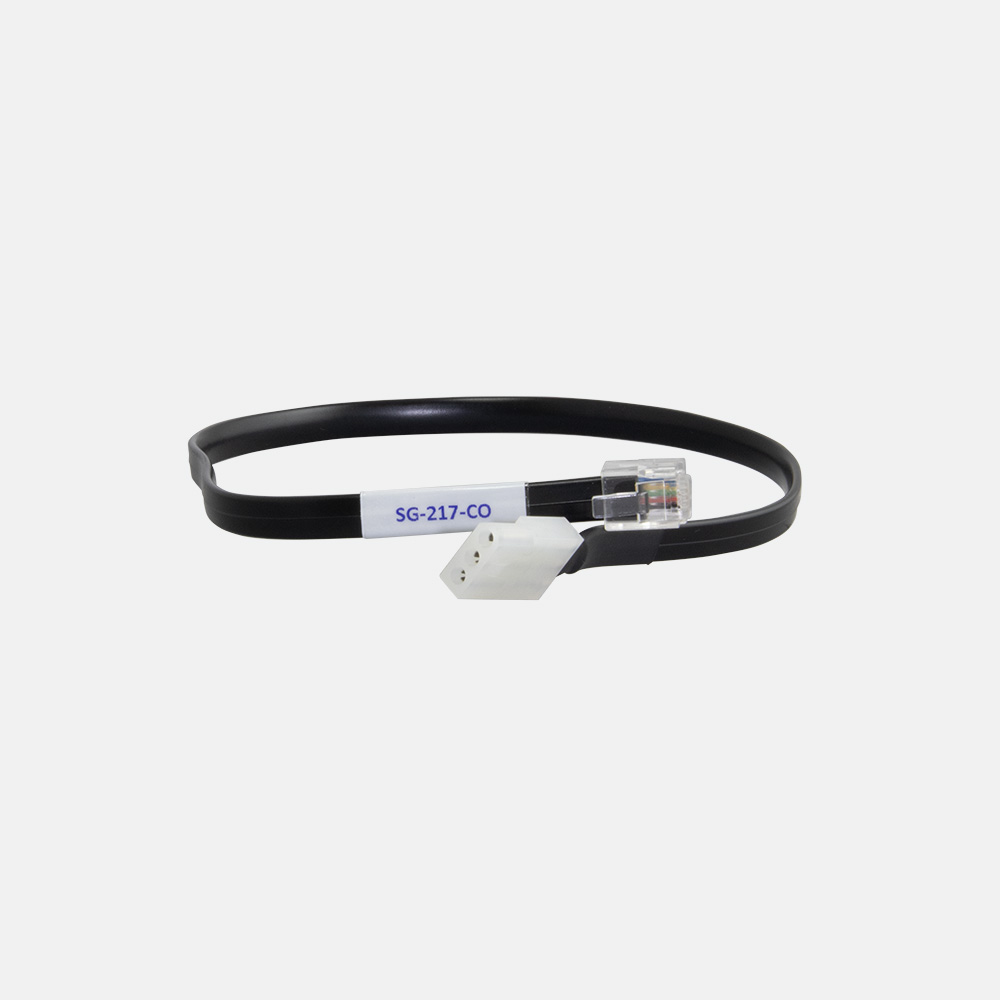

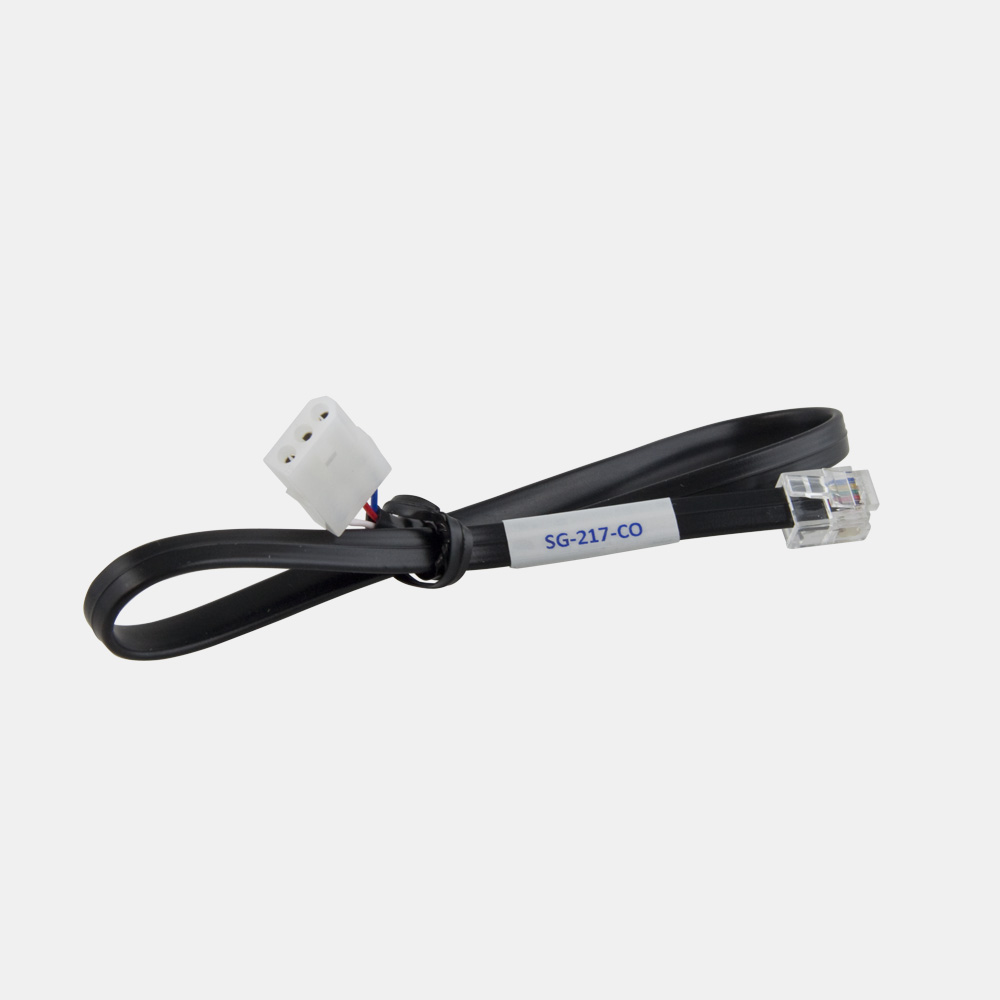

SG-217-CO
Adapter cable – Coulbourn connection panel to Med output device
M-Shell/F-Pin 3-pin mini-Molex  >  Male RJ12 6-pin (wired for outputs)
Goes from Coulbourn connection panel – output port  >  Med output device (ex. light)

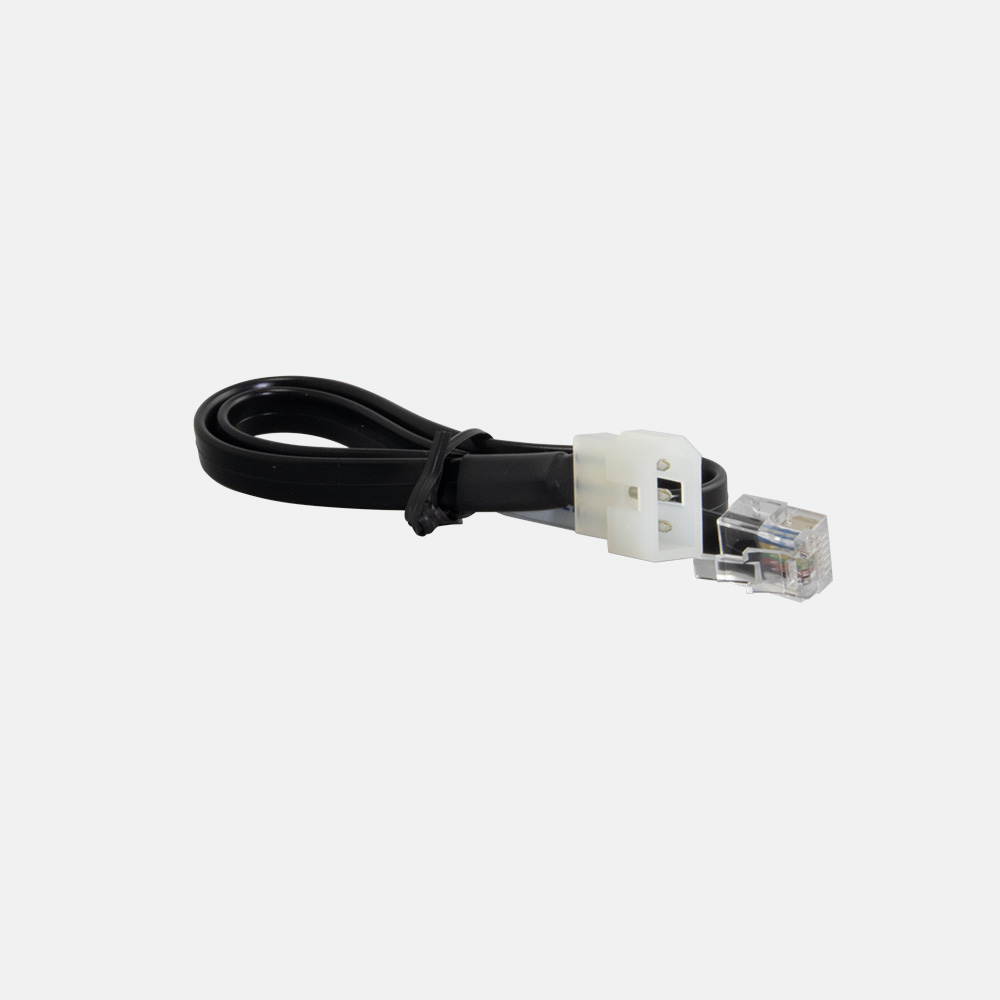

SG-217-CI
Adapter cable – Med connection panel to Coulbourn input device
F-Shell/M-Pin 3-pin mini-Molex  >  Male RJ12 6-pin (wired for inputs)
Goes from Med connection panel – input port  >  Coulbourn input device (ex. lever response)

SG-217-F-CO
Adapter cable – Med connection panel to Coulbourn output device
F-Shell/M-Pin 3-pin mini-Molex  >  Male RJ12 6-pin (wired for outputs)
Goes from Med connection panel – output port  >  Coulbourn output device (ex. light)

NOTE: For older hard-wired Coulbourn equipment, in addition to the appropriate RJ12-Molex adapter cable, an inline Female-Female RJ12 (telephone) coupler is required.
