NIR Video Fear Conditioning (VFC) System for Optogenetics

Now with OmniCtrl!

Optogenetics enables the activation of neurons using light by inserting a light-sensitive ion channel from algae into specific neurons, and is completely reversible by simply turning off the light source. To support optogenetics techniques, we now offer our Video Freeze™ fear conditioning system with an extra tall cubicle, a counterbalance arm, TTL converter, and a chamber with a modified top.

All packages for optogenetics feature:

• NIR light, which eliminates the need for bright visible light
  Visible light can be used within a session as a cue without impacting the video recording
• Five different user-defined intensity settings of white light
• Real-time video recording (30 frames per second) allows software to distinguish between subtle movements such as whisker twitch, tail flick, and freezing behavior
• Contextual inserts, which provide additional variables when studying the effects of contextual cues on learning and memory
• Digital camera to capture high quality, low noise video
• OmnCtrl Interface Card and 12 I/O OmniCtrl Connection Panel w/Sound

In addition, contextual packages feature:

• Foam lined cubicle
• Grid floor harnesses for all three different styles of floor (level, alternating, staggered)

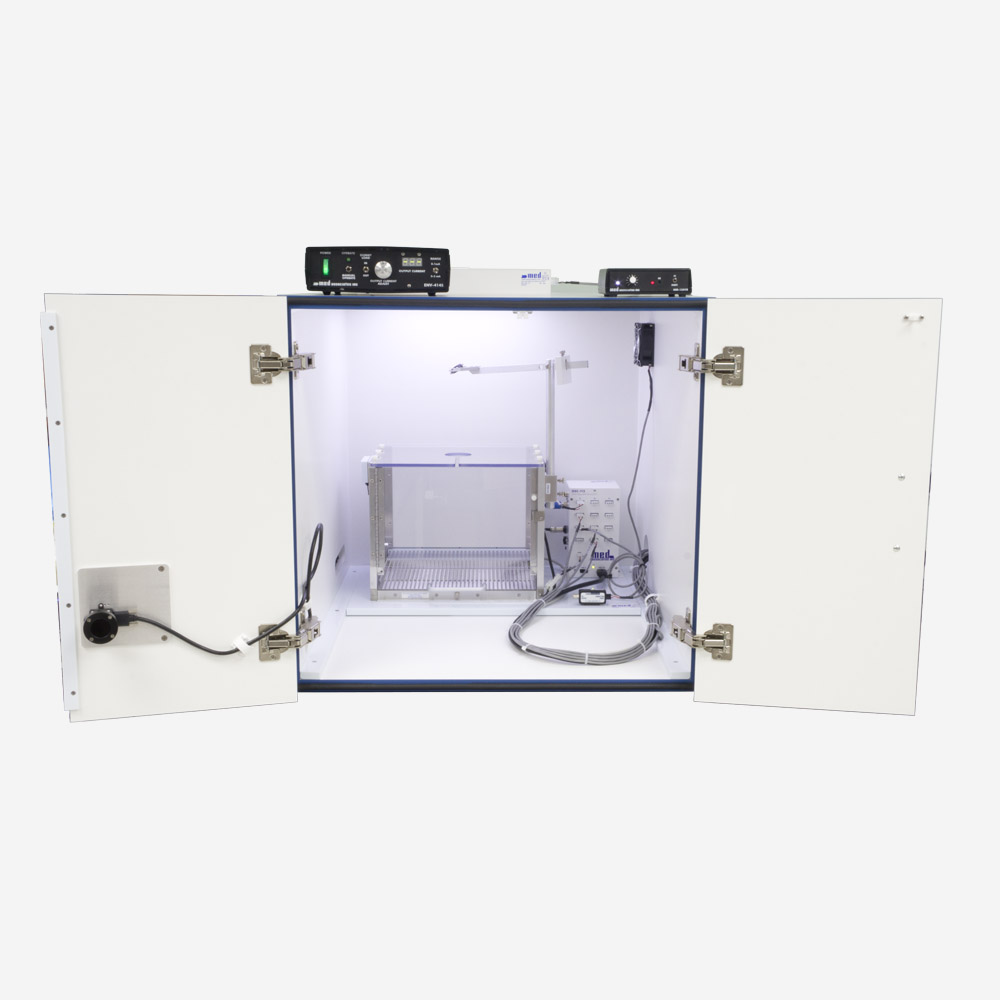

• Low profile style chambers for clear view of animal during recording (featured in photo above)

NOTE: The only differences between mouse and rat packages are the spacing and size of rods in the grid floors and the grid floor aversive stimulation harness.
