OmniCtrl Connection Panel

OmniCtrl™ Connection Panel
OC-112 | OC-124
The next generation connection panel!

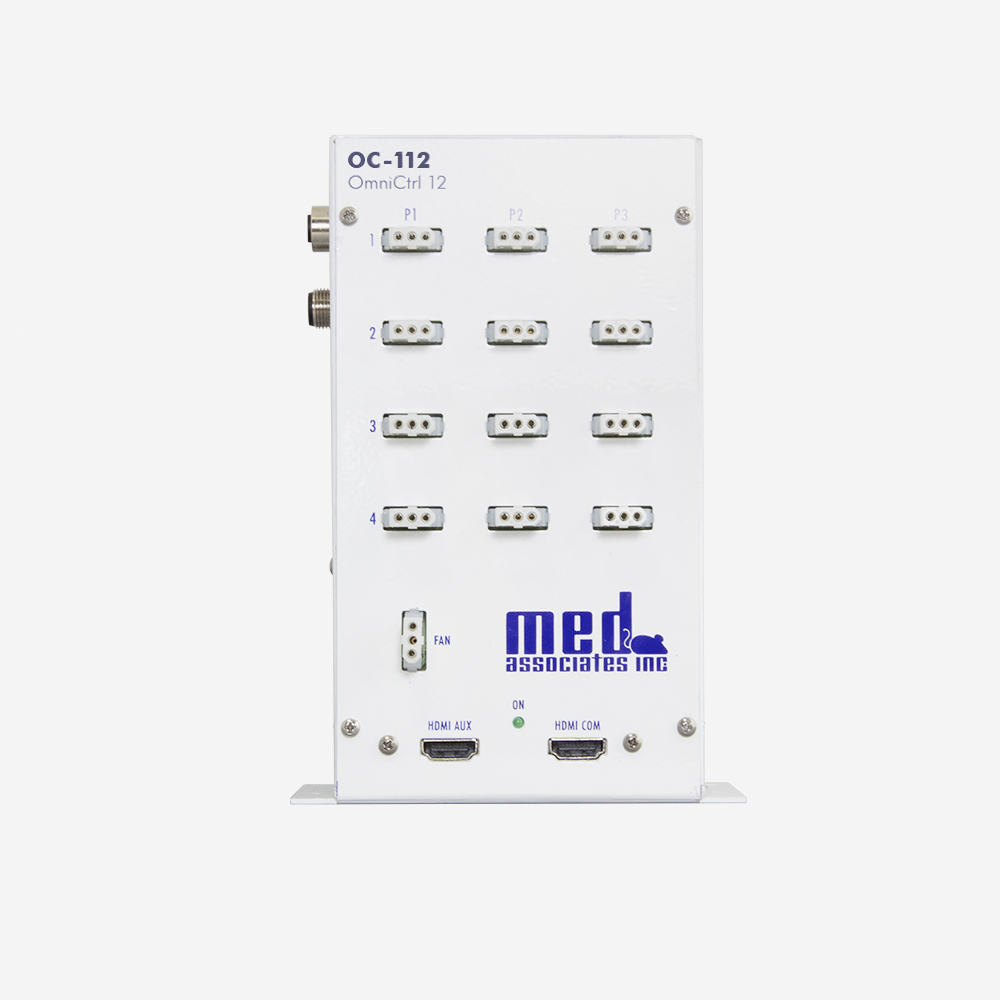

The standard OmniCtrl Connection Panels have 12 I/O’s.

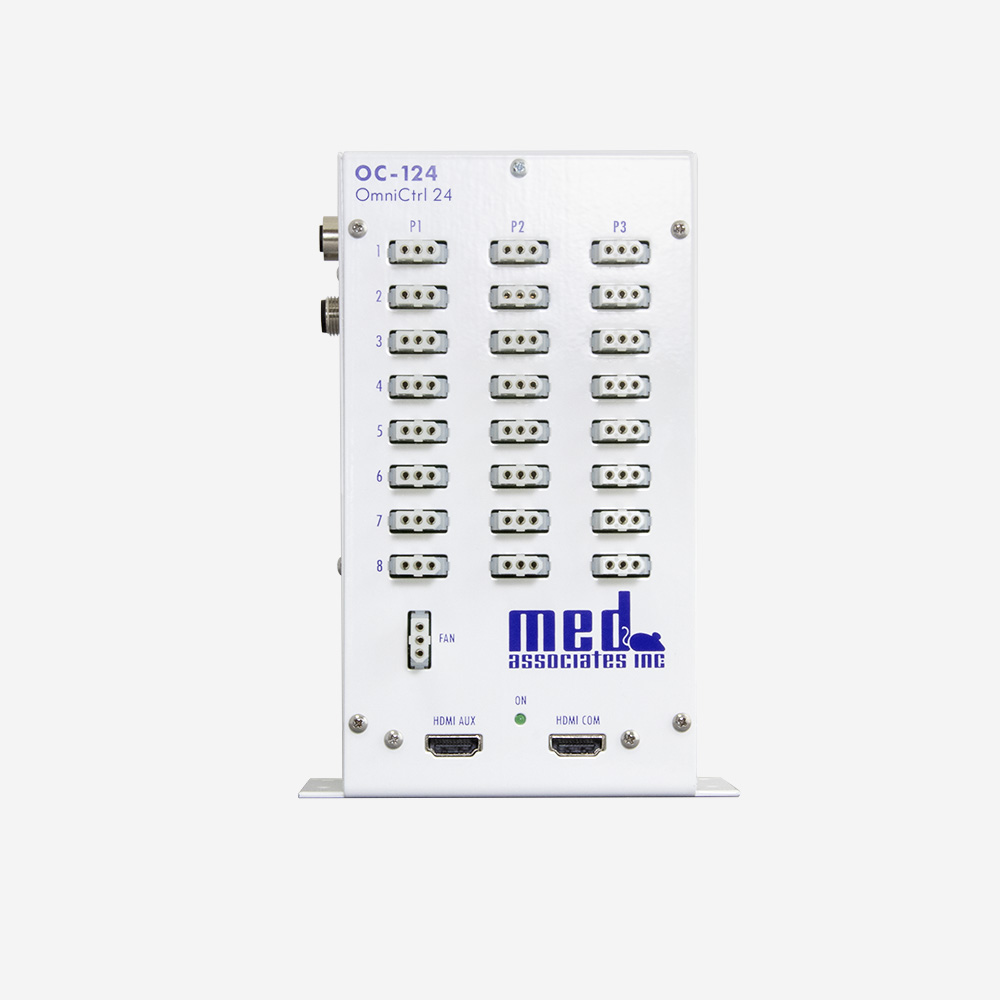

• • The double sized 24 I/O panel is useful for more port-intensive configurations like the Response Key w/LCD Stimulus Display (ENV-131M).
  • Use with OmniCard™ interface modules (IC-124)

• 3-pin Molex ports for both inputs and outputs, to one HDMI port

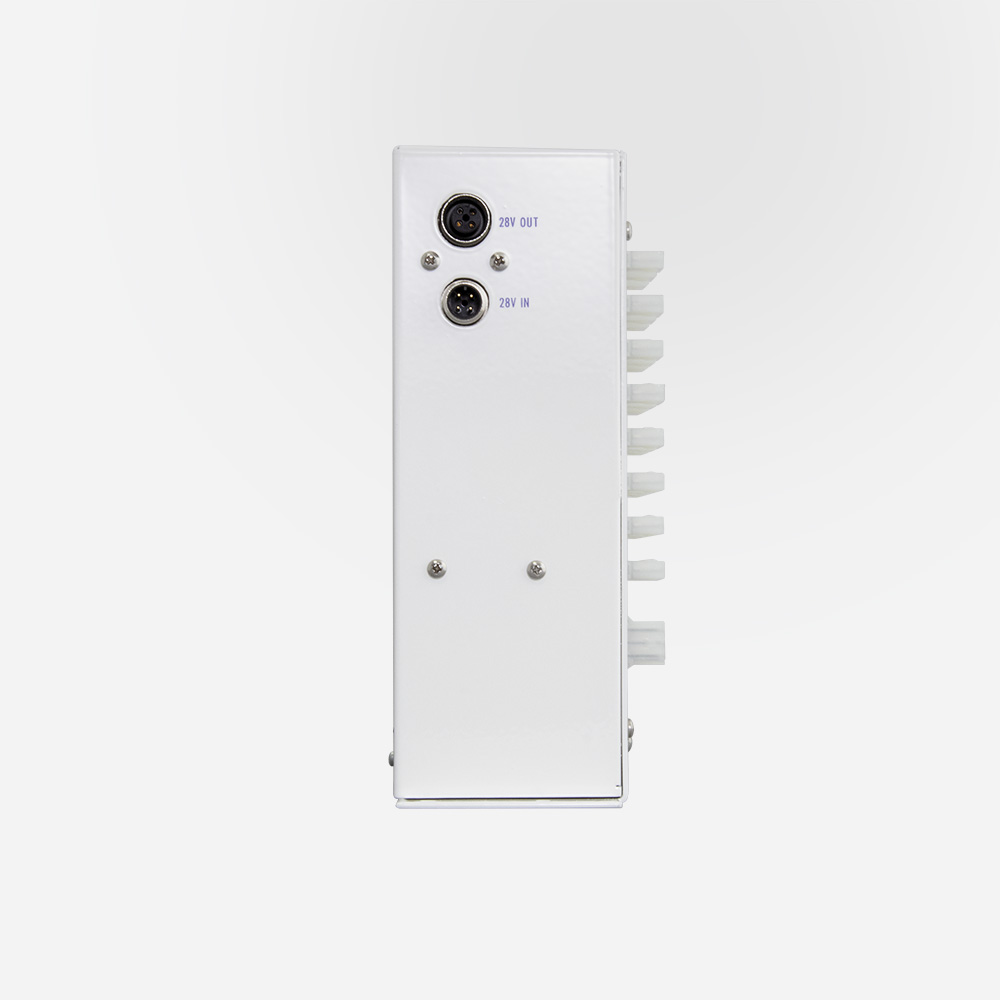

• 28V DC power required via M12 port and pass-through via an M12 port to power one additional panel
• Requires HDMI interface cables (CAB-HDMI-X)
  NOTE: The 24 I/O model takes up both control panels.

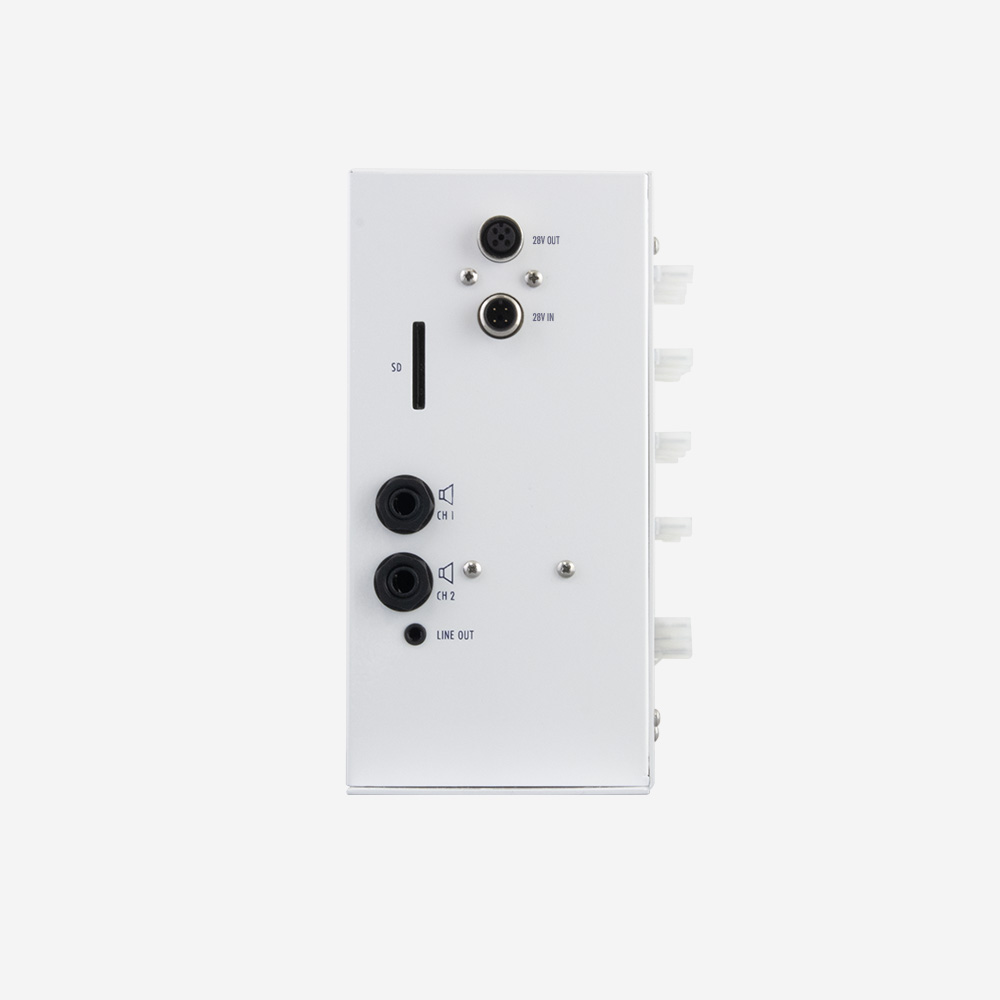

OmniCtrl™ Connection Panel w/Sound Amp
OSC-112
The same features as the OmniCtrl 12 I/O Connection Panel, with the addition of a built-in programmable audio generator! Capable of producing pure tones, white noise, clicks, and playing WAV files.

Output Offset Range: -20 to +5 dB (per channel)
Output Sound Pressure Level (SPL): 20 – 100 dB*
Pure Tone Frequency Range: 100 – 70,000 Hz
Click Output Frequency Range: 1 – 100 Hz
*NOTE:  In 1 dB increments. SPL obtainable with ENV-228AM or ENV-328BM/BW speakers. Measured at 7.5 cm, 0° axial offset with ANL-930 SPL Meter.
