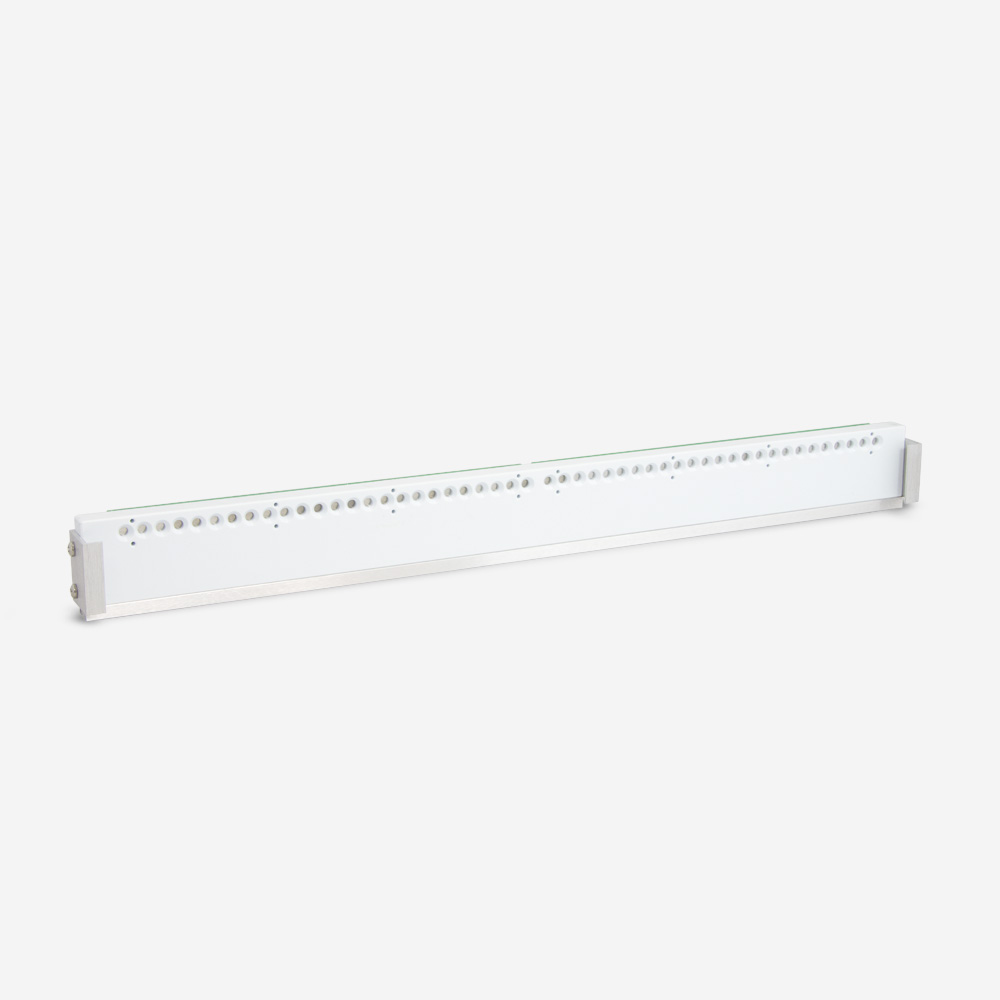

Quick Disconnect Grid Floor Harness
- Floor can be changed easily between subjects for improved throughput
- Spring-loaded contacts mounted in a polypropylene strip and wired in sequence to a DB9 connector
- When installed, each rod presses firmly against a contact for reliable shock delivery
- Attaches to the rear of the chamber, and remains in place when the floor is removed for easy cleaning without wires, circuit boards, or other connections
- The harness for the XL shuttle box (ENV-010MXL-QD) is included in the XL chamber (ENV-010MXL)
- Use the SG-219G-10 M/F DB-9 Shock Output Cable to connect to an aversive stimulator
- NOTE: This harness will not work with older floors that have been drilled and tapped
US Pat. No. 6412441 B1, Canadian Pat. No. 2,368,344, UK Pat. No. 1226750, Australian Patent 772111, France 1,226,750, Germany 602 05 143.6, Italy 1,226,750, The Netherlands 1,226,750, European Pat. No. 1226750, other foreign patents pending.
