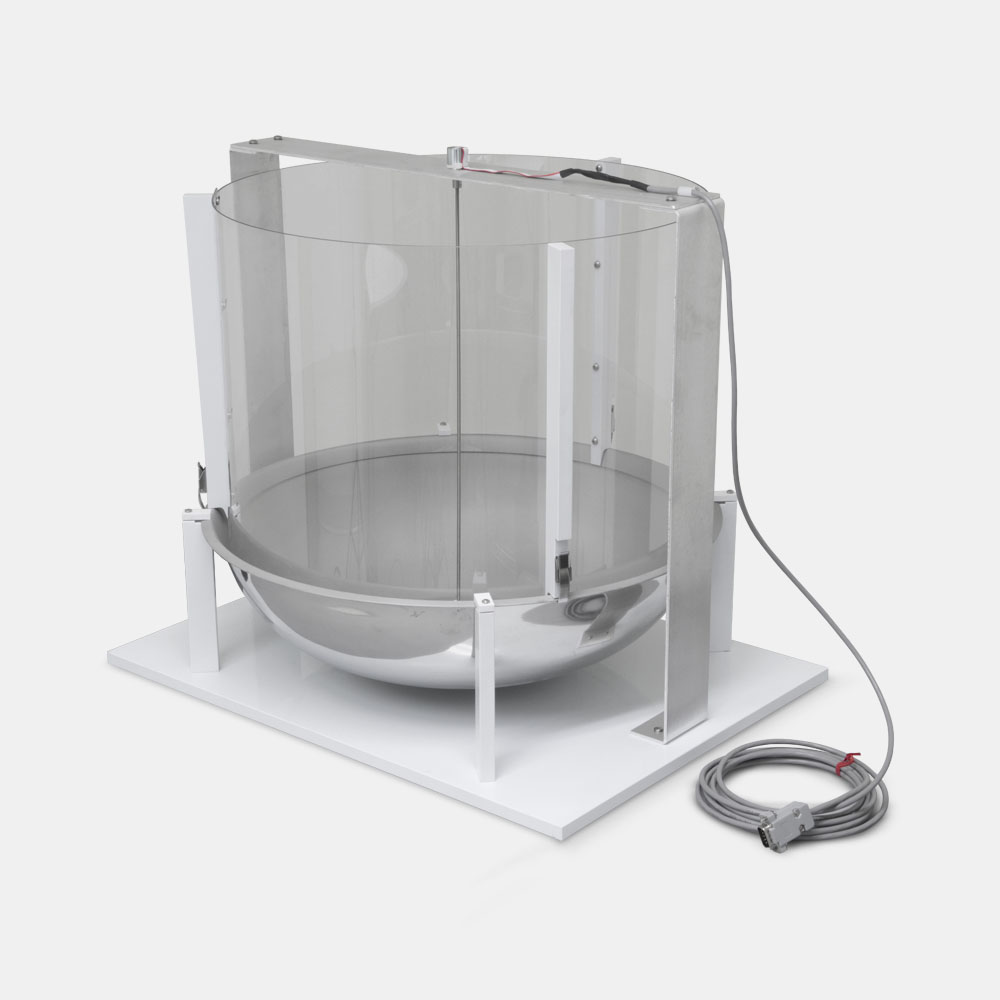

Rotorat Package

Rotorat Package
Rotorat Package - Image 2
Rotorat Package - Image 3
Rotorat Package - Image 4
Rotorat Package - Image 5
Rotorat Package - Image 6
  • Stainless steel leash extends from the sensitive optical encoder to an animal jacket
    • Detects both clockwise and counterclockwise
      rotations
    • Reports movements with a sensitivity of 3.6° or 100 increments for one full rotation of 360 degrees
    • Enables measurement of ipsillateral and contralateral rotations following unilateral ablation or microinjection

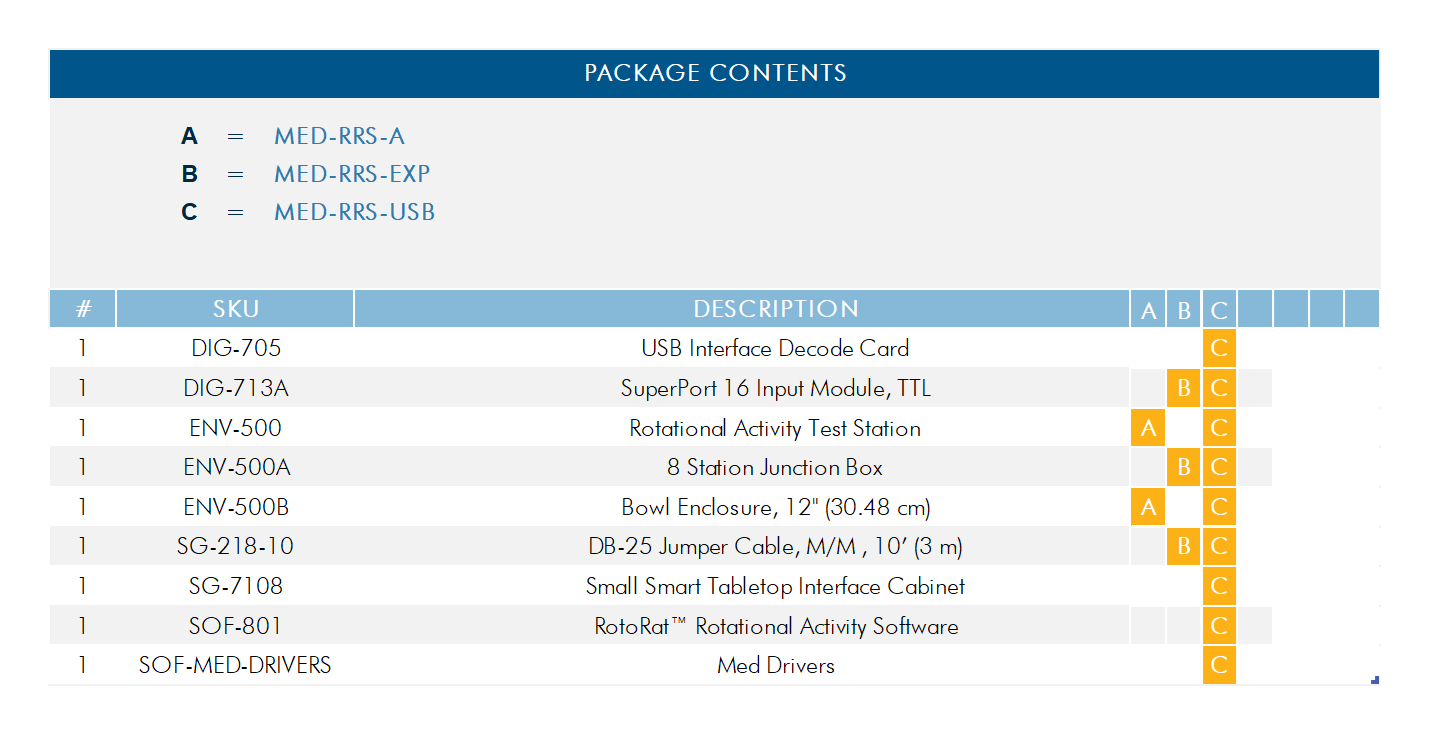

  • Starter package includes everything needed to run one station of rotational activity in medium sized rats (250-350 grams)
    • Alternative or additional jacket sizes are available, we carry a full range of jacket sizes to accommodate animals from 100 to 500 grams
  • Built for years of trouble free use, constructed of sturdy materials including a solid polypropylene base and stainless steel leash and bowl

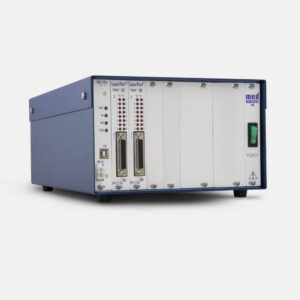

  • System is expandable to 16 or 24 units by adding an Interface Expansion Package (MED-RRS-EXP) for every eight (8) stations
    • Up to seven (7) additional stations can be added to the starter package (MED-RSS) for a total of eight (8) on one interface unit
    • Operate a maximum of 24 rotometry units per computer using Interface Expansion Packages (MED-RRS-EXP)
  • Provides a graphical representation of the animals position at all times





Specifications

Top:
18” OD (45.7 cm)

Bottom:
6” OD (15.2 cm)

Depth:
6” D (15.2 cm)

Overall (LxWxH):
21.5” x 15.75” x 19.14”
(54.61 x 40 x 48.62 cm)
