Shuttle Box Test Package – Standard

• Shuttle box chamber is the same for both rats and mice
  • Conversion requires simply changing out the grid floor and adjusting the height of photobeam sensors
• Four independent infrared photobeams on each side of the chamber for accurate measurement of activity
  • More reliable and higher resolution than a tilting floor, pressure plate, or single photobeam solution
• MDF sound attenuating cubicle limits distractions during testing
• Stimulus light and Sonalert tone generator on each side
• Grid floor is equipped with our patented quick disconnect harness for aversive stimulation delivery to either side of the chamber floor and makes for easier clean-up
• Up to sixteen (16) chambers can be controlled with one computer, either a desktop or laptop*

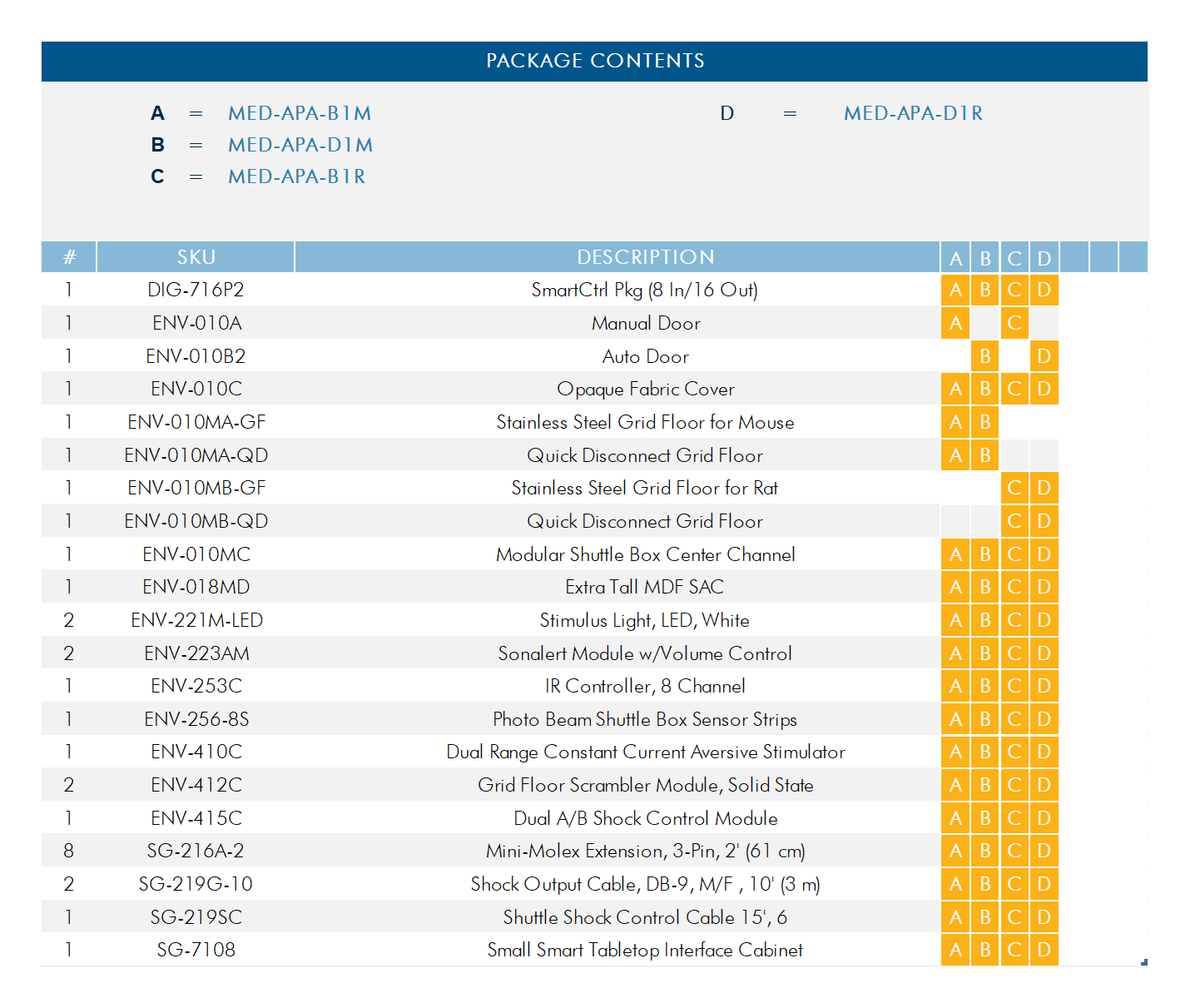

NOTE: Computer, power + control interface, and software are not included. Order the MED-SYST-8-USB package to run up to eight chambers, or the MED-SYST-16-USB for up to sixteen.
