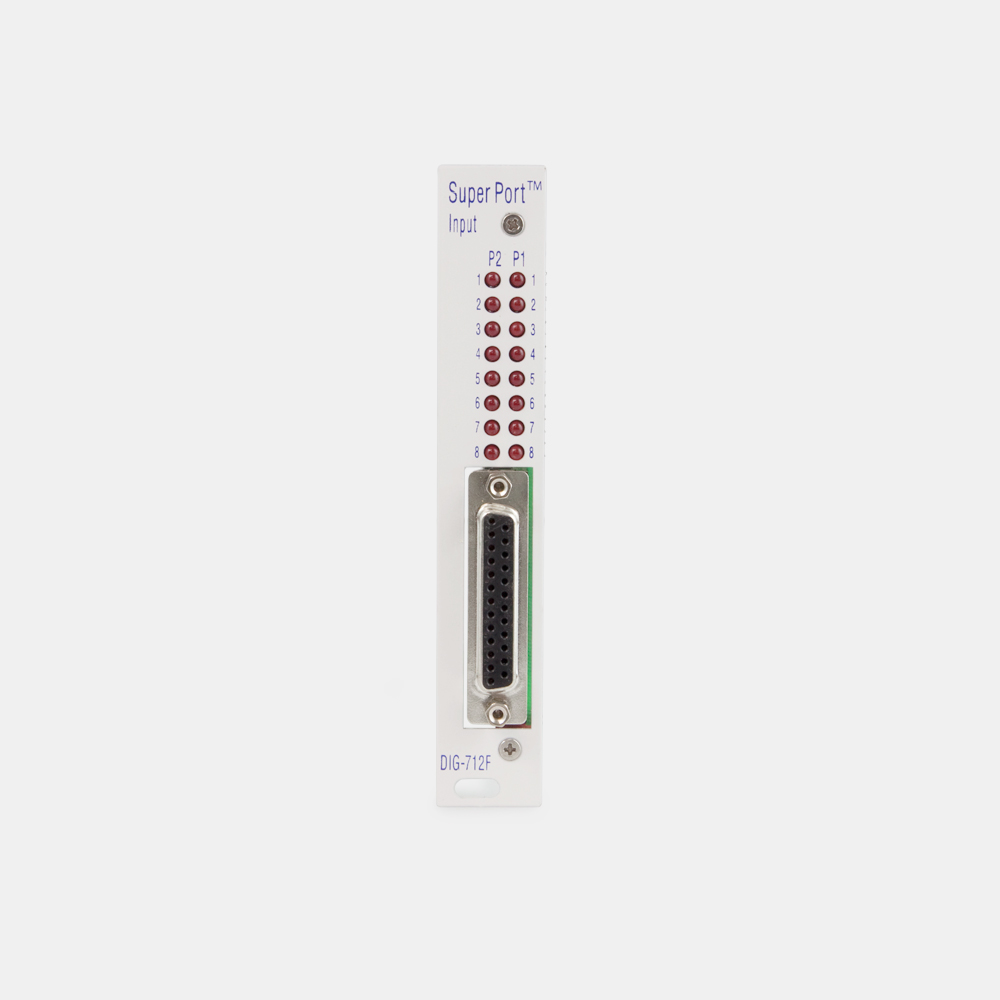

SuperPort™ Input Module

Superport™ Summary

SuperPorts serve the same purpose as SmartCtrl™ cards: sending and receiving signals from devices in the chamber to the computer. They function similarly, except each card can only function for inputs or outputs (not both) and only work with passive connection panels.

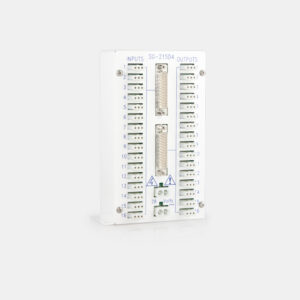

• Connect to a passive panel using a DB25 cable
• Signals are transmitted based on the jumper settings of the card (see manual for more info)

Features

Receive signals from devices in the chamber to the computer (via Med-PC for example.)

• Single-width module
• Sixteen (16) optically isolated input lines
• Input sensitivity can be set to:
• Level to directly reflect the state of the input
• Toggle to reflect the change of the input
• Inputs can also be inverted to:
• Accommodate normally open (NO) or normally closed (NC) switches
• Adjust for active low or active high devices
