Syringe Pump – Med Control

The next generation of our time-tested PHM-100 series syringe pump has significant improvements, including a complete redesign of the enclosure, anti-siphoning hardware, and a purge/flush feature.

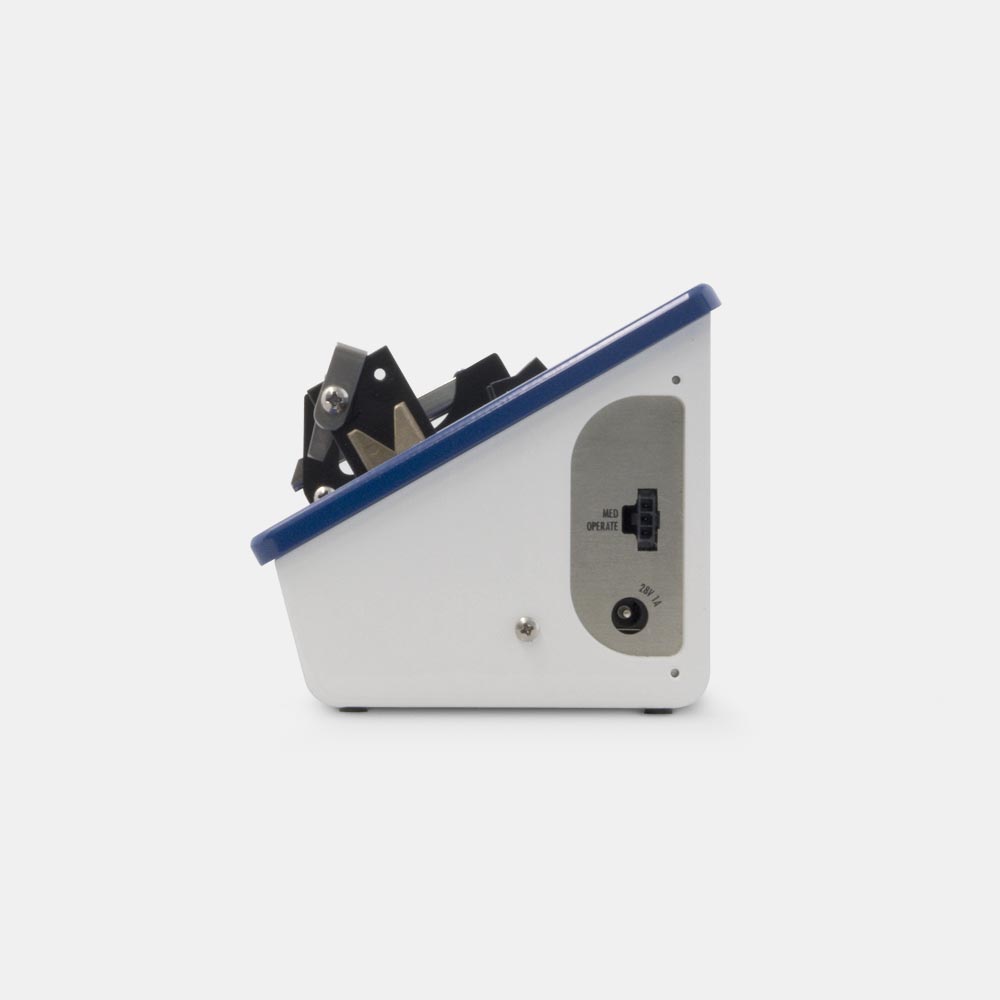

• Can be operated standalone, or activated and de-activated by a Med-PC^® 28 volt output (3-pin micro-fit molex)
• Time “on” determines the dose
• A built-in limit switch disconnects power when the plunger reaches the end of the syringe
• Stainless steel and aluminum construction

NOTE: A calibration sheet is included with every pump, which supplies a formula for calculating flow rate using any syringe.



Single Speed Model (PHM-200):

The motor is single fixed speed, the speed of the motor determines the infusion rate for the syringe.

• Speeds available: 0.1, 0.5, 1, 1.5, 2, 3.33*, 5, 10, 15, 20, 30 RPM
  *NOTE: 3.33 RPM is standard



Variable Speed Model (PHM-210):

The motor speed is adjustable, the speed of the motor determines the infusion rate for the syringe.

• Adjustable from 0.1 – 30 RPM in 0.1 increments



Advanced Variable Speed Model (PHM-220):

Sophisticated infusion control using the dose control interface or computer software via USB connection with:

• Med-PC software (w/SOF-111)
• RAZEL-IPC Infusion Pump Control software (w/SOF-111)
• SOF-111 USB Syringe Pump Test Program (included)
• 3rd party/custom software

Check out the PHM-220 Control Mode Comparison Chart for weighing capabilities and drawbacks for each infusion control mode.

Also, see the catalog for more info on all three pumps.

Manuals can be found here:
PHM-210 | PHM-200 | PHM-220

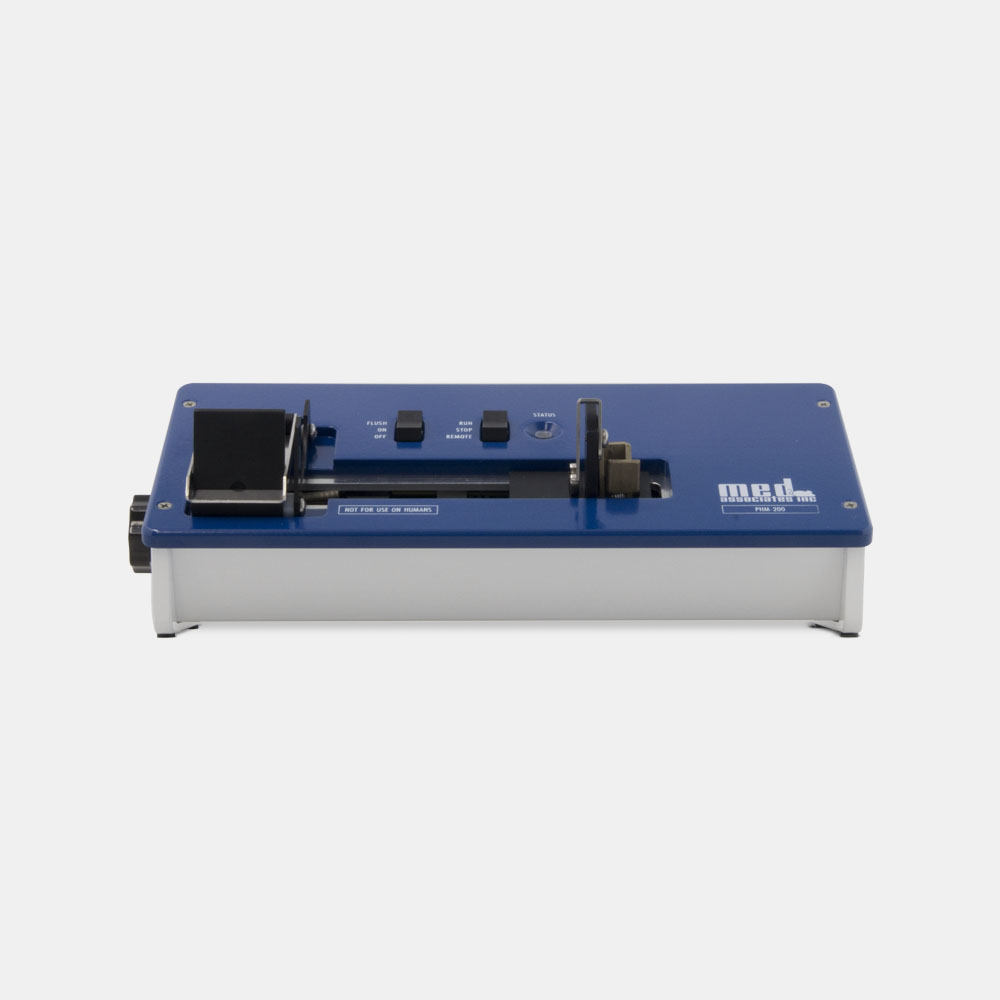

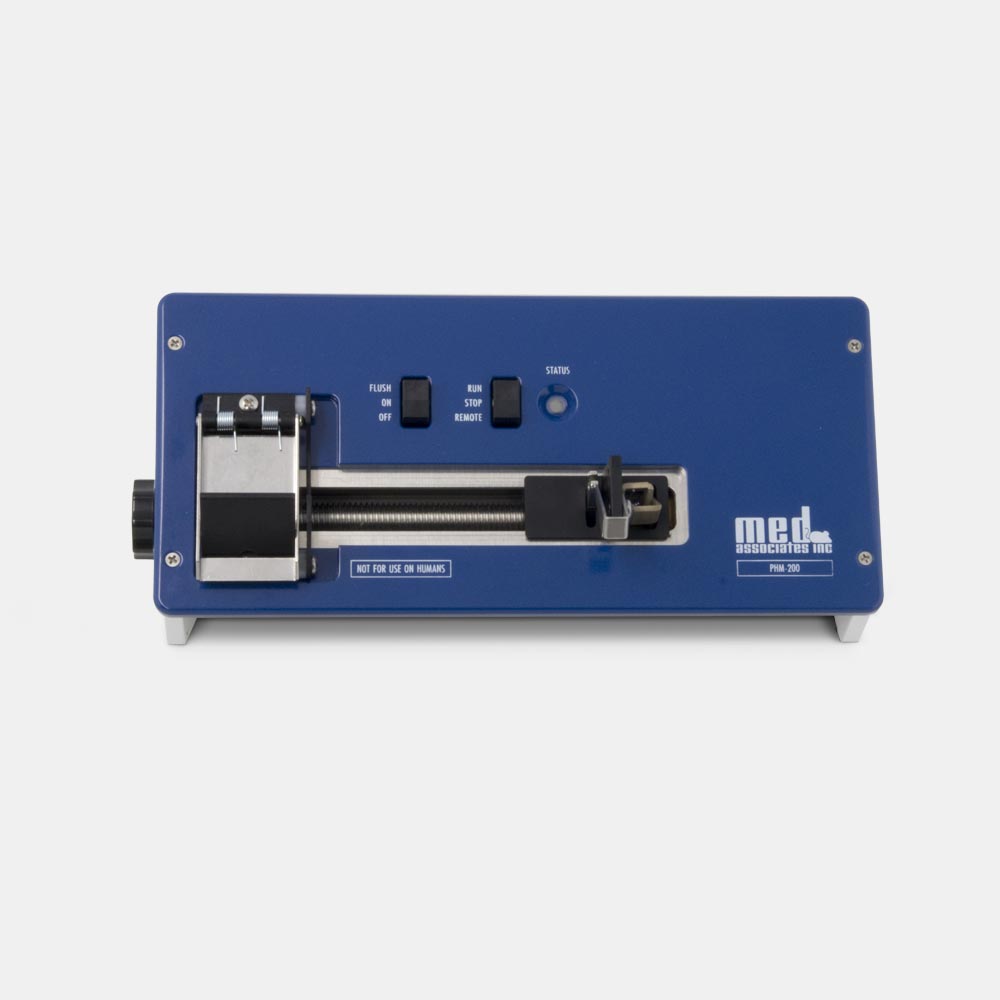

Syringe pump shown with 30mL syringe.

NOTE: Also shown with 1mL syringe, which requires the R-ACC micro syringe adapter (sold separately)



1) Infusion range is approximate, calculated using example syringes (1mL = 0.174cm2 / 50mL = 5.477cm2), different syringes may yield greater or lesser infusion rates.

2) Using syringes with plunger flanges greater than 1” OD requires removal of the plunger lock, which disables the syringe reversal feature.
