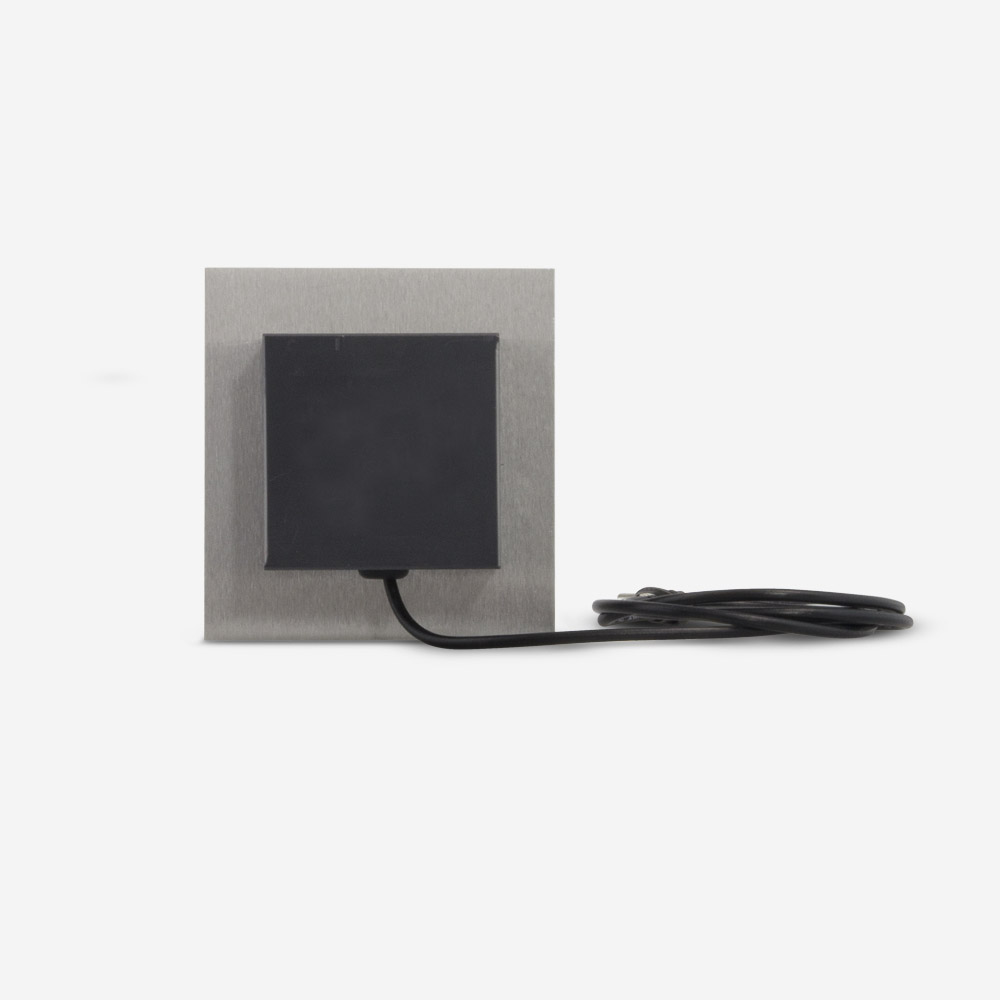

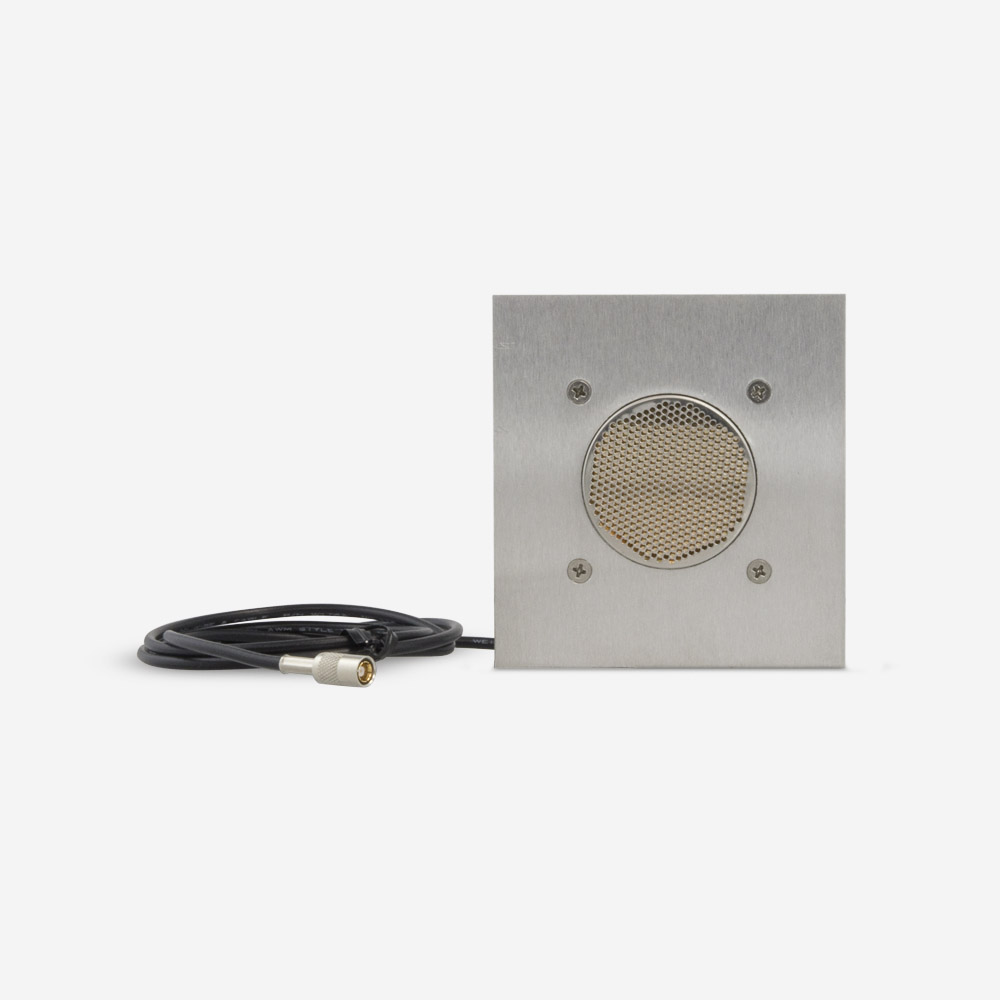

USV Detection Package

Compact design provides all the benefits of professional sound recording equipment in an easy to use, affordable unit.

• Actual frequency (KHz) and amplitude (dB) measurements for advanced digital signal processing
• Detect ultrasonic vocalizations in any two user-defined bands ranging from 20 – 100 KHz, for example:
  • Band 1 captures events between 20 – 40 KHz above 60 dB
  • Band 2 captures events between 30 – 100 KHz above 40 dB
  • NOTE: Bands can overlap in frequencies or amplitudes
• Scans the environment every 30 milliseconds
• Up to 16 USV detectors on a single computer

USV for Modular Chambers:

Summary of Contents
> USV Detector
> USB Cable
> Mini-Molex Extension Cables
> USV Software
> AC Power Adapter

NOTE: Modular chamber sold separately (ENV-307W for mouse and ENV-008 for rat)

USV for Home Cages:

Summary of Contents
> USV Detector
> USB Cable
> Mini-Molex Extension Cables
> Power Cable
> USV Software
> AC Power Adapter

NOTE: Home cage sold separately (PHM-125H for mouse and PHM-126H for rat)

To learn more about our ultrasonic vocalization system, check out the brochure or this webpage.
